Dimensions
Dimensions: 13.6 × 6.0 × 2.7 inches (345 × 153 × 68mm, with brackets)
Weight: 3.38 lbs (1,533g)
Slot Occupancy: ~3.5
Technical Specifications
Core Codename & Process Node: Navi48 / 4nm
Bus Standard: PCI-Express 5.0 x 16
OpenGL: OpenGL 4.6
Unified Shaders: 4096 units
Core Frequency: 2400-2970MHz / 2520-3060MHz (Dual BIOS: Standard/High-Frequency)
Memory Speed/Frequency: 20Gbps / 2518MHz
Memory Capacity/Specification: 16GB / 256-bit / GDDR6
Output Interfaces: DP ×3 + HDMI ×1 (DP2.1a, HDMI2.1b)
Multi-Monitor Support/Max Resolution: 4 / 7680×4320 (DP & HDMI)
External Power Supply: 8-pin ×3 (Recommended Power Supply: 850W or Higher)
Total Graphics Card Power Consumption: Approx. 304W / 330W
Cooler: Adjustable speed, speed display, start/stop support
Warranty Information
36-Month Limited Hardware Warranty
Supported Systems: Windows 10/11 (64-bit only)
In the box:

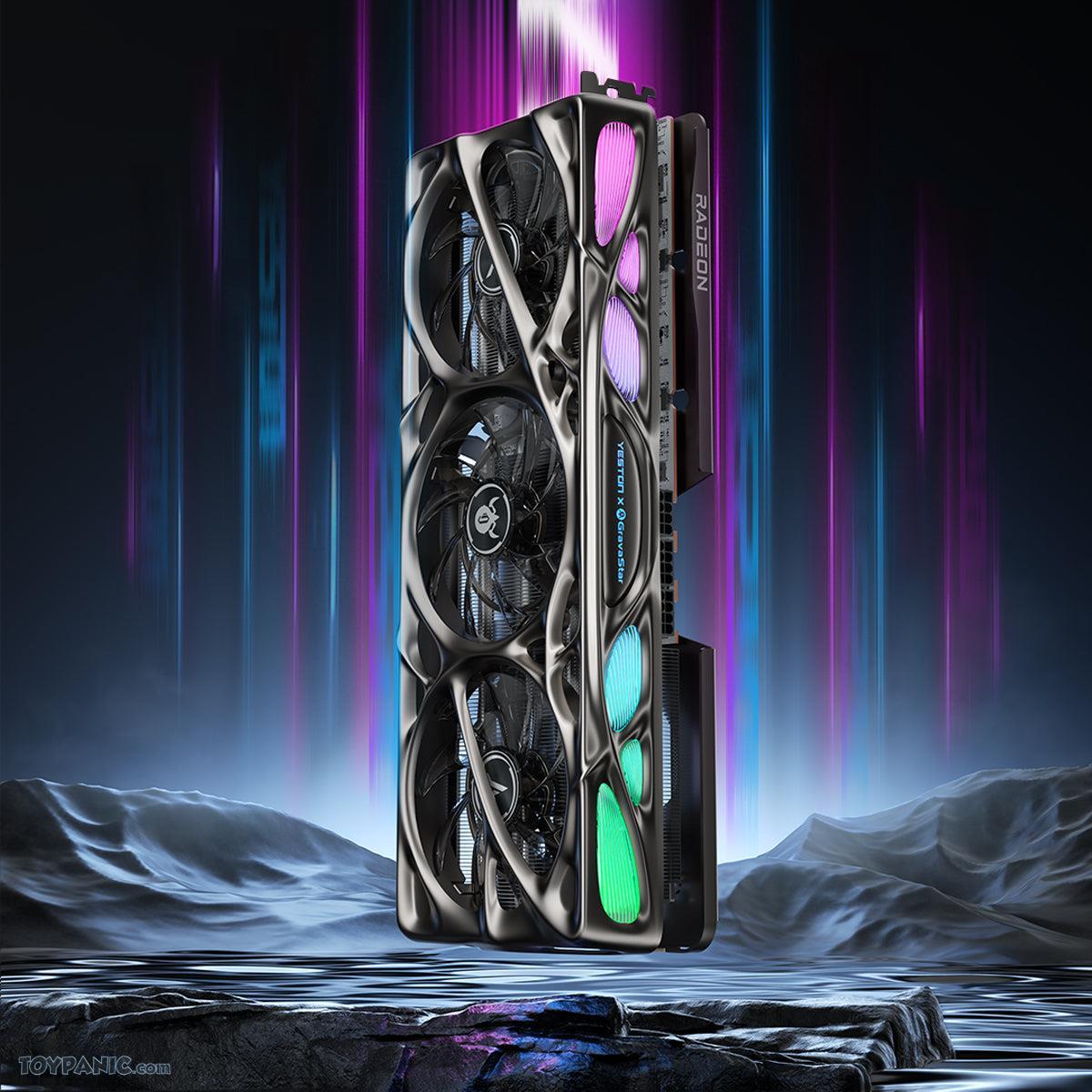

-1 x Yeston x GravaStar AMD RADEON RX 9070 XT 16G GDDR6 Mercury Nova OC Graphics Card
-1 x ARGB Sync Cable
-1 x Port Dust Plug
-1 x Gold Finger Protector
-1 x Warranty Card
